Article Number: A2C59501981

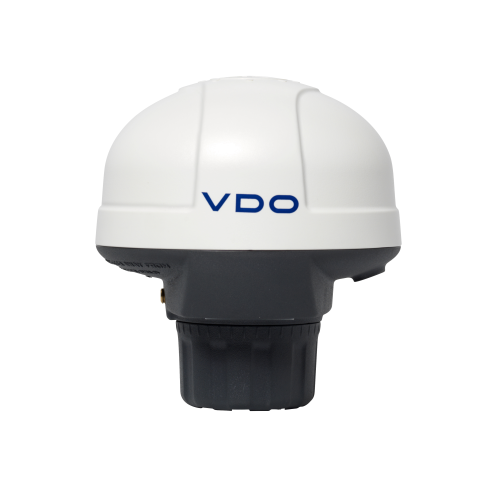

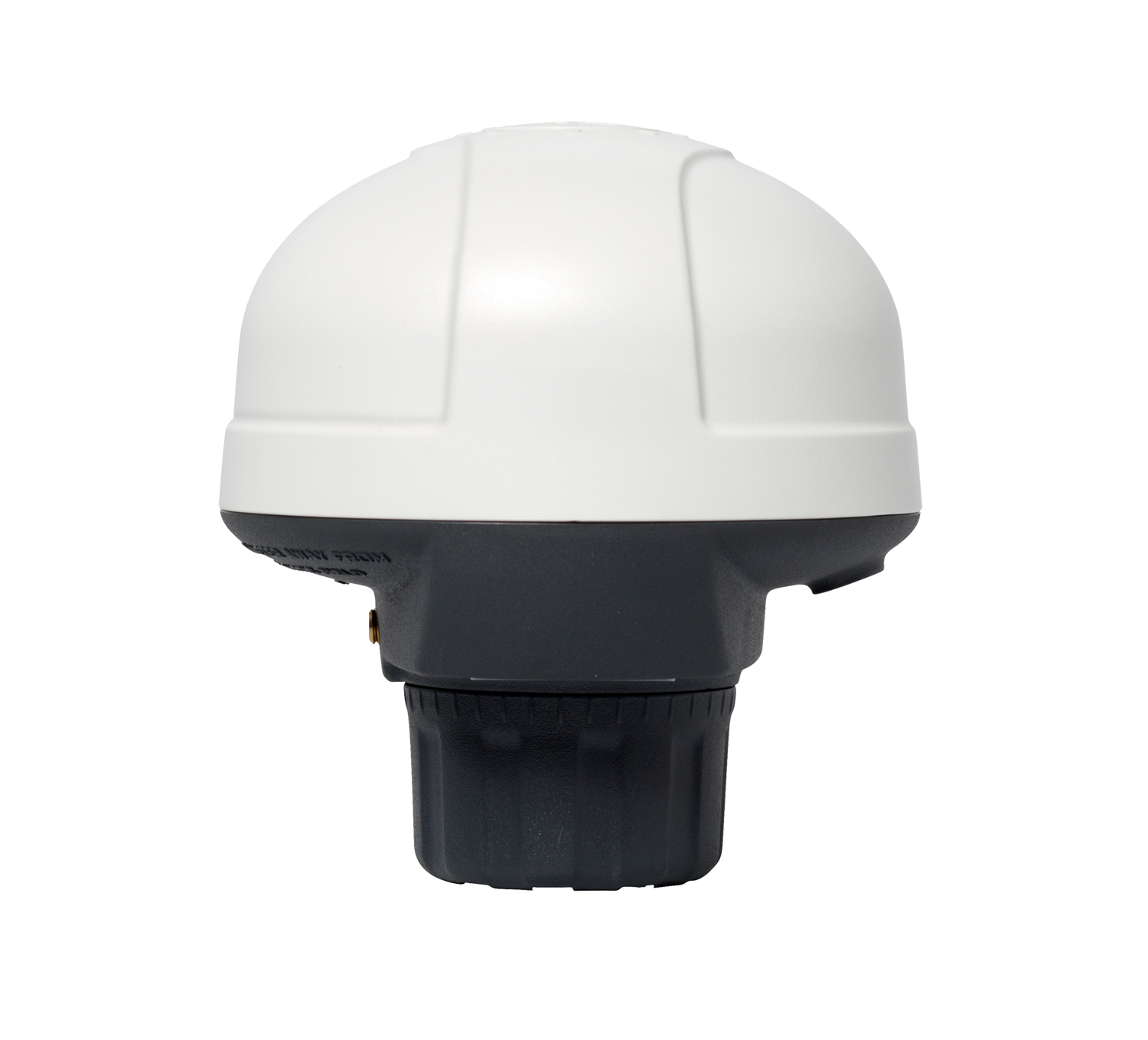

NavSensor

  • Function: Clock, GPS, Speed, Air pressure, Air temperature
  • Length: 100 mm
  • Thread: 1-14 UNS-2B
  • Calibration:
  • Measurement Range: -20°C to + 65°C
  • Output Signals: digital

Highlights

<p><ul><li> NMEA 2000® certified</li>
<li> IPX6 extended protection rating</li>
<li> GPS Module: Position/ time/ boats vector/ signal quality/ satellites</li>
<li> Compass: +/-40° tilt angle/ <2° accuracy/ alarm (rapid field strength change/ tilt angle overrun/ undervoltage condition)</li>
<li> Barometer: Air pressure/ air temperature sensor</li><li> Operating temperature range -20°C / +70°C</li></ul></p>

Detailed Information

The multifunctional NavSensor is a unit of high precision sensors.

The inertial sensor complements the inbuilt satellite receiver module (GPS) to provide accurate readings of the speed of travel as well as the pitch & roll (up and down) and yaw (sideways) motion of the boat.

Compass readings can be displayed electronically thanks to the fluxgate, which also facilitates course corrections for electronic autopilots.

The barometer and air temperature sensors are early indicators of forthcoming weather conditions.
