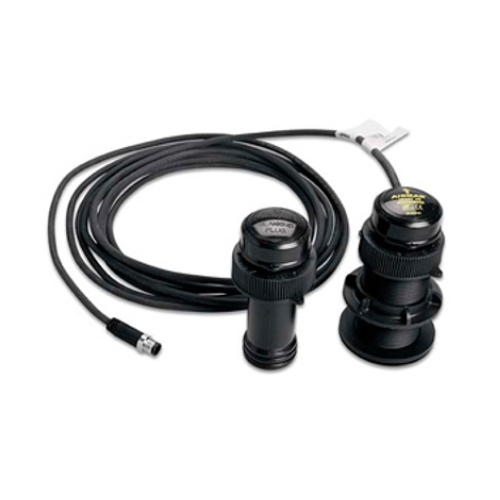

NMEA 2000® Triducer Sensor

- Functions: Depth, Speed, Temperature, Attitude
- NMEA 2000® output
- Bluetooth BLE interface for configuration
- 0.5m to 100m depth measurement range
- Up to 45 knots speed measurement range
- minus 10° to +40°C temperature measurement range
- For fiberglass or metal hulls
- Low profile thru-hull mounting style
- Plastic housing
- 51mm hole size
- 57mm usable shaft length
- 6m cable length
- Update rate: depth: 1Hz, Speed: 5Hz, Heel/Trim: 10Hz
- NMEA 2000 LEN: 3
- 100W power
- 0.9 kg weight


The new NMEA2000 Triducer, featuring the new Gen2 paddlewheel and AIRMAR’s CAST™ app, delivers a powerful combination of best-in-class speed performance and a simple, reliable way to calibrate accurate speed using your wireless device. The Gen2 paddlewheel delivers industry-leading start-up speed-through-water data below 0.3 knots and is linear at 0.6 knots, maintaining accurate performance up to 45 knots.

The DST810 and CAST app provide a simple, consistent way to calibrate speed-through-water. The free CAST app delivers calibration options that, until now, were only available through expensive PC-based software. In addition to water temperature, depth and newly upgraded 5.7 Hz (5X per second) speed-through-water output with improved speed resolution, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST app, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
