Article Number: A2C1957400001

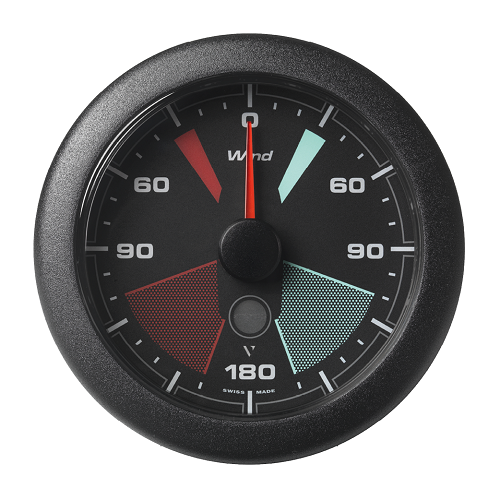

OL Wind Angle 85mm Black

  • Series: OceanLink
  • Function: Wind
  • Input Signal:
  • Dial Unit Outer: °
  • Dial Scale Outer: 360
  • Installation Dimension: 85.0

Highlights

<p><ul><li>NMEA 2000® input</li><li>Infrared push button for switching displayed data</li><li>Anti-fog double layer plastic lens</li><li>Protection rating IPX7</li><li>Operating temperature range -20 °C / +70 °C</li></ul></p>

All features

  • Color: black
  • Nominal voltage: 12 V from NMEA 2000
  • Operating voltage: 9 - 18 V
  • Current consumption: ≤ 100 mA
  • Dimensions: 105 mm (outer) 85 mm (mounting hole)
  • Protection class: IP X7
  • Connectivity: NMEA 2000
  • Operating Temperature: From -20 to +70 °C

Detailed Information

With the Infrared Button you can easily switch between functions:

OceanLink 85mm Gauges

Downloads

Datasheet

Manual

Software

Accessories

  • Accessories Article Number:
  • OceanLink Round Bezel 85mm white A2C1352140001
  • OceanLink Round Bezel 85mm black A2C1111380001
  • OceanLink Round Bezel 85mm chrome A2C1141580001
  • Spinlock nut 85 mm A2C1376090001
  • Power and Data Cable - 85mm Master A2C1433330001
