Article Number: A2C1065660001

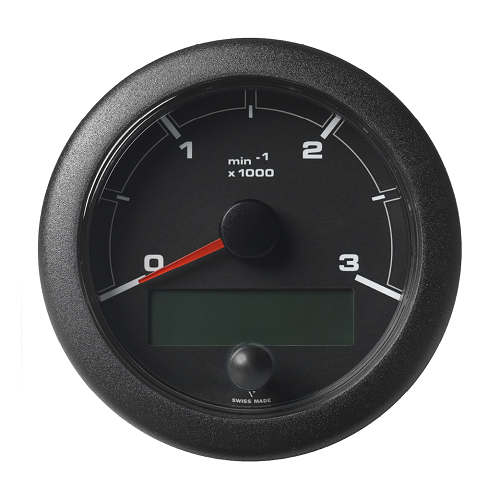

OL Tachometer 3000RPM 85mm Black

  • Series: OceanLink
  • Function: Engine revolution
  • Input Signal: Frequency, Resistive
  • Dial Unit Outer: RPM
  • Dial Scale Outer: 3000
  • Installation Dimension: 85.0

Highlights

<p><ul><li> 1x NMEA 2000® input</li>
<li> 1x J1939 and analog input</li>
<li> Reverse polarity protection</li>
<li> Anti-fog double layer plastic lens</li>
<li> Protection rating IPX7</li>
<li> Operating temperature range -20 °C / +70 °C</li></ul></p>

All features

  • Range: 0 - 3000 rpm
  • Color: black
  • Nominal voltage: 12 / 24 V
  • Operating voltage: 9 - 32 V
  • Current consumption: ≤ 100 mA + 100mA for each EasyLink satellite gauge
  • Dimensions: 105 mm (outer) 85 mm (mounting hole)
  • Protection class: IP X7
  • Display: Dot matrix LCD 132 x 33 px
  • Connectivity: NMEA 2000, SAE J1939, EasyLink
  • Analog Input: 2x resistive, 1x frequency
  • Output data: NMEA 2000, EasyLink, alarm output
  • Operating Temperature: From -20 to +70 °C

OceanLink 85mm Gauges

Downloads

Datasheet

Manual

Software

Certificates

Accessories

  • Accessories Article Number:
  • OceanLink Round Bezel 85mm white A2C1352140001
  • OceanLink Round Bezel 85mm black A2C1111380001
  • OceanLink Round Bezel 85mm chrome A2C1141580001
  • Spinlock nut 85 mm A2C1376090001
  • Power and Data Cable - 85mm Master A2C1433330001
  • Data Cable - Engine 2 TFT 7" OL A2C1992110001
  • Veratron Diagnostic Tool A2C3931270001
