Article Number: B002008

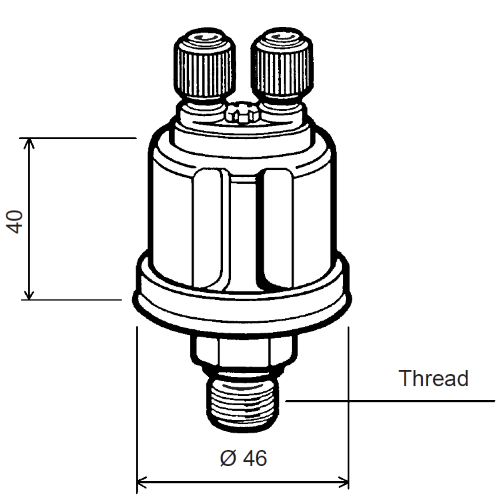

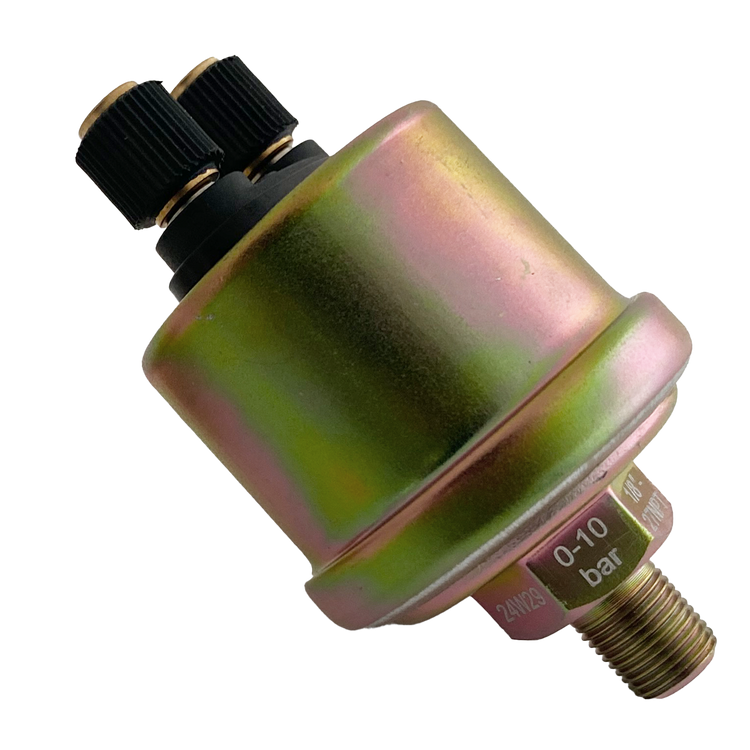

Pressure Sensor 10bar (Insulated Return) 1/8-27npt

  • Function: Engine oil pressure, Transmission oil pressure
  • Length:
  • Thread: 1/8 - 27 npt
  • Calibration: 10-184 Ohm
  • Measurement Range: 10 bar
  • Output Signals: resistive

Highlights

<p><ul>
<li>Long service live</li>
<li>Easy installation</li>
<li>Standard 10-184Ohm output</li>
<li>Wide operating temperature range (-25 to 120°C)</li>
<li>Insulated ground pin</li>
</ul></p>

Detailed Information

Veratron’s Pressure Sensors deliver a stable quality reading during a long lifespan. They have excellent anti-vibration performance and a wide operating temperature range.

The sensors can be used in a wide range of applications.

All sensors come with a sensor output and an insulated ground pin.

Downloads

Datasheet
