Article Number: A2C1767000001

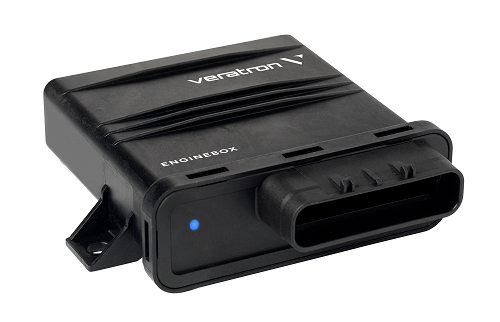

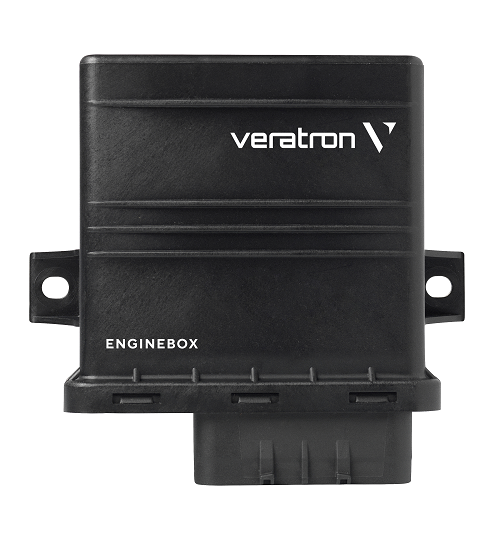

EngineBox for Dual Engine

  • Function: Rudder, Battery, Engine revolution, Exhaust gas temperature, Speed, Trim, Waste water level, Sea temperature, Fresh water level, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure, Air temperature
  • Nominal Voltage: 24V, 12V
  • IP Class: IPX9k-f
  • Connectivity: NMEA 2000, SAE J1939

Highlights

<p><ul><li> 2x J1939</li><li> 1x M12 5 pins NMEA 2000®</li><li> 2x Input 0–4 kHz for RPM</li><li> 8x Inputs 0 – 400 Ω</li><li> 2x Inputs 4 – 20 mA</li><li> 2x Input 0-5Volt</li><li> Analog to NMEA 2000® gateway</li><li> J1939 to NMEA 2000® gateway</li><li> 2 model for single engine and dual engine configurations</li><li> Compact design</li><li> Status LED</li></ul></p>

All features

  • Nominal voltage: 12V / 24V
  • Operating voltage: 8 - 32 V
  • Protection class: IPX9k-f
  • Dimensions: 150 x 105 mm
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Color IBN + 1.44" TFT optically bonded
  • Analog inputs: 8x resistive / 2x frequency / 4x voltage / 2x 4-20mA
  • Digital inputs: 2x SAE J1939, NMEA 2000
  • DeviceNet M12 5 pins, Micro-pack MW1000 (with fitting cable)

Downloads

Datasheet

Manual

Software

Certificates

Spare Parts

  • Spare Parts Article Number:
  • 32Pin Power Cable for Dual Engine A2C1766930001
