Article Number: B00041601

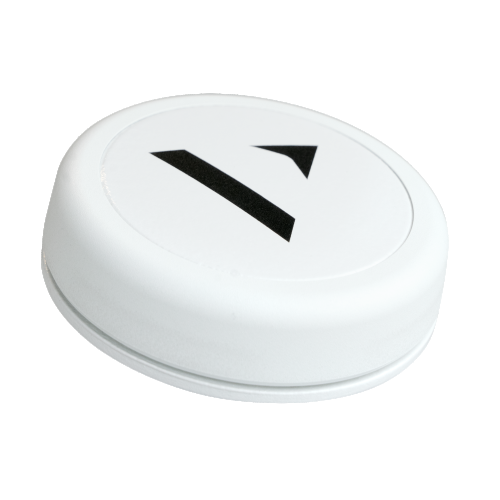

Veratron GO - Data


  • Function: Multifunctional
  • Nominal Voltage: 12V
  • IP Class: IPX7
  • Connectivity: Bluetooth, NMEA 2000

Highlights

<p><ul><li>Bluetooth Low Energy (BLE) 5.0 interface</li><li>Robust against electrical noise</li><li>NMEA 2000 certified</li><li>Small installation footprint</li><li>Compatible with OceanLink 52mm bezels</li></ul></p>

Detailed Information

Our GNSS receiver is the smallest available on the market with a diameter of 60.7 mm and a height (without connectors) of 18.9 mm.
Veratron GO is a family of products featuring 3 versions, namely Veratron GO (GPS), Veratron GO Data (Bluetooth) and Veratron GO Plus+ (GPS and Bluetooth). Those 3 devices have the same look, but their functions are not to be confused. Two main differences are to be noted, one is a NMEA certified GPS receiver and the other two are NMEA certified to Bluetooth Gateway.
The Veratron GO is a GPS/GLONASS/Galileo constellation receiver and antenna in one compact package. NMEA 2000® certified, it has easy plug-and-play installation that do not require any setup. Built for marine use, extreme weather conditions and continual outdoor exposure, this powerful little device IPX7 protected, receives 12V DC power and connects to NMEA backbone via a standard NMEA Micro-C M12 5-pin connector. Accurate to 2.5 meters with a good sky view, the small instrument has high capabilities with 72 channel reception and a 10Hz refresh rate. Worth to note is the time to first fix of 30 seconds from cold start.
The Veratron GO Data embeds a NMEA 2000 certified to Bluetooth Low Energy gateway which allows to repeat all the vessel’s digital data towards your smartphone or tablet. With 2.4 GHz band and 40 channels it has a maximum connection range of 160 meters (considering where the device is installed on your vessel) and up to 7 simultaneous connections are possible. Your data are protected since the device pairing via passkey is supported. There are approximately 50 datatypes supported by it, Engine RPM, Coolant Press, Rudder Angle, TWA or Battery Current, all of these being now available on your smartphone via the Veratron App.
The Veratron GO Plus+ combines all the features of the above devices in a single unit.
In correlation with the launch of our new Veratron GO devices, we decided to create an App, namely the NavDash, which is our first launched App compatible with the Veratron GO.
Now you have all your vessel data close to your fingertips!


Downloads

Datasheet

Manual
