Article Number: A2C1824820001

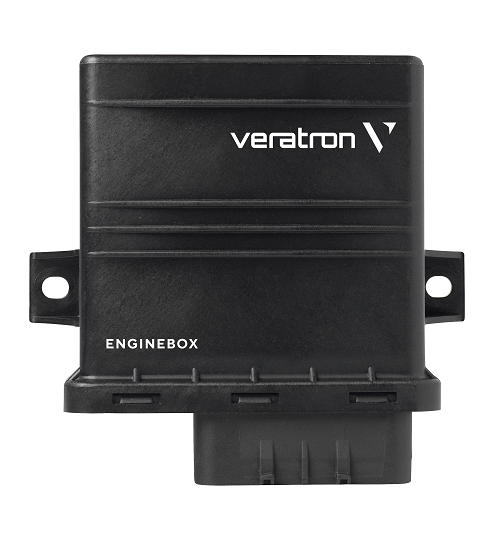

EngineBox for Single Engine

Single engine interface with NMEA 2000®, J1939 & analog inputs. Compact, ISO 8846:1990 compliant, easy PC setup.

  • Function: Rudder, Battery, Engine revolution, Exhaust gas temperature, Speed, Trim, Waste water level, Sea temperature, Fresh water level, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure, Air temperature
  • Nominal Voltage: 24V, 12V
  • IP Class: IPX9k-f
  • Connectivity: NMEA 2000, SAE J1939

Highlights

<p><ul><li> 1x J1939<li> 1x M12 5 pins NMEA 2000®<li> 1x Input 0–4 kHz for RPM<li> 4x Inputs 0 – 400 Ω<li> 2x Inputs 4 – 20 mA<li> 1x Input 0-5Volt<li> Analog to NMEA 2000® gateway<li> J1939 to NMEA 2000® gateway<li> 2 model for single engine and dual engine configurations</li><li> Compact design</li><li> Status LED </li></ul></p>

All features

  • Nominal voltage: 12V / 24V
  • Operating voltage: 8 - 32 V
  • Protection class: IPX9k-f
  • Dimensions: 150 x 105 mm
  • Analog inputs: 4x resistive / 1x frequency / 2x voltage / 2x 4-20mA
  • Digital inputs: SAE J1939, NMEA 2000
  • DeviceNet M12 5 pins, Micro-pack MW1000 (with fitting cable)

Downloads

Datasheet

Manual

Software

Certificates

Spare Parts

  • Spare Parts Article Number:
  • 32Pin Power Cable for Single Engine A2C1821960001
