Article Number: B00084201

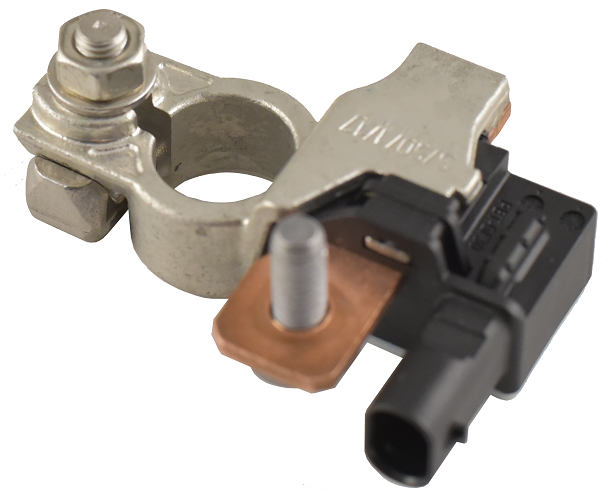

Intelligent Battery Sensors 12V/500Ah

  • Function: Battery
  • Length:
  • Thread: M6
  • Calibration:
  • Measurement Range: +/- 200A (1500A for 0.5s peak) / 6-18V
  • Output Signals: digital

Highlights

<p><ul>
<li>Accurate measurement of battery voltage/ current and temperature parameters</li>
<li>Determination of the battery state of charge (SOC) and state of health (SOH)</li>
<li>Simple mechanical mounting</li>
</ul></p>

Detailed Information

The Intelligent Battery Sensors deliver  accurate measurement of battery voltage, current and temperature parameters.

With these measurements und the data collected over time, the sensors determine the batteries state of charge (SOC) and state of health (SOH) parameters.

The mechanical mounting of the products is simple and thanks to to accessory pole adapters, there aren't any changes on the existing system wiring required.

Downloads

Datasheet

Manual

Accessories

  • Accessories Article Number:
  • Battery Pole Adapter (for IBS 12V 500A - M6) B00068401
  • Adapter Cable Kit - IBS 12 Volt B00090601
