Article Number: A2C1029570003

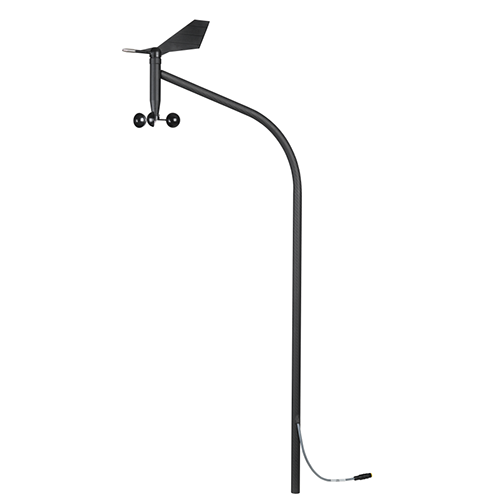

NMEA 2000® Vertical Mast Unit Wind Sensor - with Front Bracket

  • Function: Wind
  • Length: 1135 mm
  • Thread:
  • Calibration:
  • Measurement Range: 360° / 1.8-126 km/h
  • Output Signals: digital

Highlights

All features

  • Nominal voltage: 12 V (from NMEA)
  • Current consumption: 30 mA
  • Dimensions: 520 mm length, 1135 mm height
  • Accuracy: +- 1° / +- 1 kn
  • Connectivity: NMEA 2000
  • Operating temperature: -10°C to 65°C
  • Connector: DeviceNet M12 5 pins

Downloads

Datasheet

Manual

Spare Parts

  • Spare Parts Article Number:
  • Wind Vane for New Type Masthead N05-800-356
  • Anemometer Cup Rotor (OceanLink®D TYPE) N05-800-306
  • Anemometer Cup Rotor N05-801-448
  • Mast Bracket VMWS Front A3C0143540001
