Article Number: A2C59514193

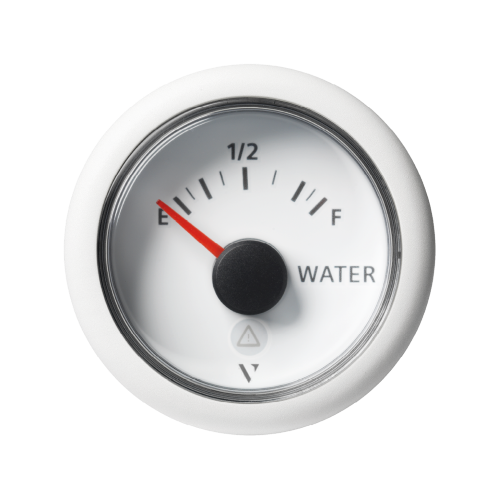

VL Fresh Water Level 52mm 3-180Ω Empty/Full White


  • Series: ViewLine
  • Function: Fresh water level
  • Input Signal: Resistive
  • Dial Unit Outer:
  • Dial Scale Outer: Empty - Full
  • Installation Dimension: 52.0

Highlights

  • 8 pole Tyco / Hirschmann MQS plug
  • +/- 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Integrated warning alarm
  • Input signal: standard Ω values
  • Optional make point switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Downloads

Datasheet

Manual


Accessories

  • Accessories Article Number:
  • ViewLine Flat Bezel 52mm white A2C5318602201
  • ViewLine Flat Bezel 52mm chrome A2C5318602301
  • ViewLine Triangular Bezel 52mm black A2C5318602401
  • ViewLine Triangular Bezel 52mm white A2C5318602501
  • ViewLine Triangular Bezel 52mm chrome A2C5318602601
  • ViewLine Round Bezel 52mm black A2C5318602701
  • ViewLine Round Bezel 52mm white A2C5318602801
  • ViewLine Round Bezel 52mm chrome A2C5318602901
  • ViewLine Flat Bezel 52mm black A2C5318604001
  • Spinlock nut 52 mm A2C5205947101
  • Blindplug for 52 mm gauges A2C5312164501
  • Flush Mount Seal - ViewLine 52mm A2C53215640

Spare Parts

  • Spare Parts Article Number:
  • Connector set 8 pin A2C59510850
  • Adapter cable 8-pole A2C59512947
