Article Number: B00085502

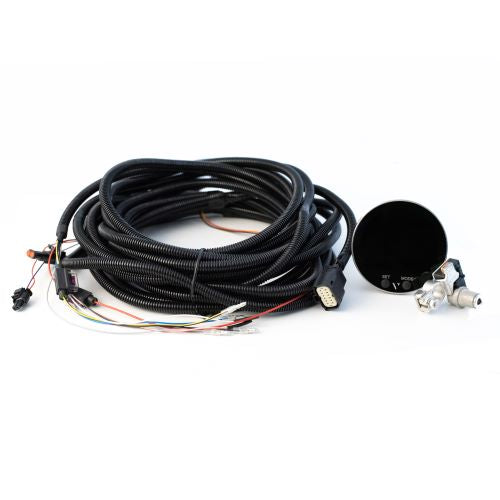

VMH 35 - Outboard Engine Kit


  • Short description:

Highlights

<p><ul><li>Stylish black-glass design with brushed stainless-steel ring</li><li>New generation sun-readable color hybrid display</li><li>Intelligent Battery Sensor (IBS) port</li><li><p>Analog to NMEA 2000® gateway</li><li>Integrated high-performance</li><li>GNSS receiver</li><li>NMEA 2000® certified</li></ul></p>


All features

  • Nominal voltage: 12 V
  • Operating voltage: 9 - 16 V
  • Current consumption: ≤ 150 mA (normal mode)
  • Cable lengths: 6m
  • Protection class: IP X7
  • gauge dimensions: 100 mm (outer) 85 mm (mounting hole)
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Color IBN + 1.44" TFT optically bonded
  • Analog inputs: 2x resistive / 1x frequency
  • Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway


Detailed Information

The first in its new VMH line of premium marine gauges/ the Veratron VMH 35 was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data/ in a compact package that's perfect for dashboards/ consoles and bulkheads on smaller vessels with limited space.
The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel/ trim and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks/ it's equipped with analog inputs/ making it ideal for refitting with older engines.An integrated GPS makes the VMH 35 the perfect standalone navigation solution. It integrates speed/ compass and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.
The Veratron VMH 35 has a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek/ brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors. Because small boat consoles are often fully exposed/ the round display is waterproof to IPX7 criterions/ both front and back. It fits a standard 85mm (3-3/8’’) panel cutout size.
Powered by the latest microprocessor/ the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness/ it draws a mere 170mA of power—a fraction of what a comparably-sized TFT screen uses.
The VMH 35 has the capacity to provide 30 types of data including engine/ EcoMode pop-up screen/ RPMs up to 8'000 with a programmable overspeed alarm/ tank levels/ battery status/ GPS and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.
