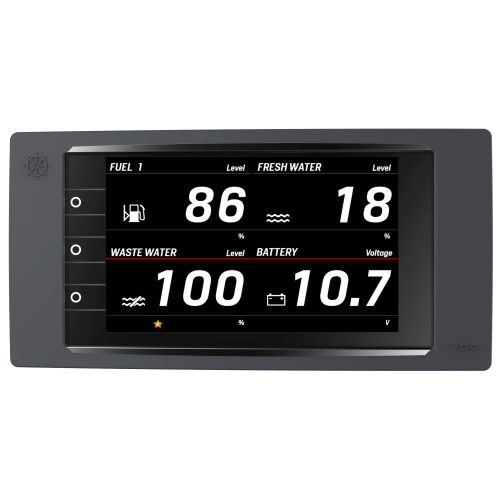

• A2C59501997 - AcquaLink 7" Display
1 1

Article Number: A2C59501997

AcquaLink 7'' TFT Display Black

  • Series: AcquaLink
  • Function: Rudder, Battery, Compass, Clock, Engine revolution, Depth, Exhaust gas temperature, GPS, Speed, Trim, Wind, Waste water level, Sea temperature, Outside temperature, Fresh water level, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure
  • Nominal Voltage: 24V, 12V
  • Bezel Color:
  • Screen dimension: 7.0''
  • Connectivity: VDO Bus

Highlights

<p><ul><li> 1x plug with 2x Video Input</li><li> 2x VDO Bus connectors</li><li> Operating temperature range -20 °C / +70 °C</li><li> Protection level front and rear IPX6/ IPX9K</li></ul></p>

All features

  • Nominal voltage: 12 / 24 V
  • Operating voltage: 9 - 32 V
  • Current consumption: ≤ 600 mA (normal mode)
  • Dimensions: 125 x 250 mm (outer)
  • Materials: Aluminium case, PBT and mineral glas front
  • Protection class: IP X7
  • Dimensions: 250 x 125 mm (outer) 105 x 206 mm (mounting hole)
  • Digital connections: VDO Bus
  • Operating Temperature: From -25 to +70 °C

Downloads

Datasheet

Manual

Software

Accessories

  • Accessories Article Number:
  • Mast Unit - Carbon Bracket (for AcquaLink 7") B00028501
  • Silicone Cover for TFT Display 7'' A2C59501973
