Article Number: B00085501

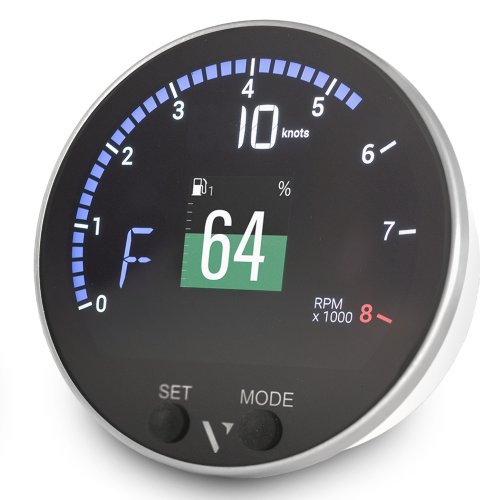

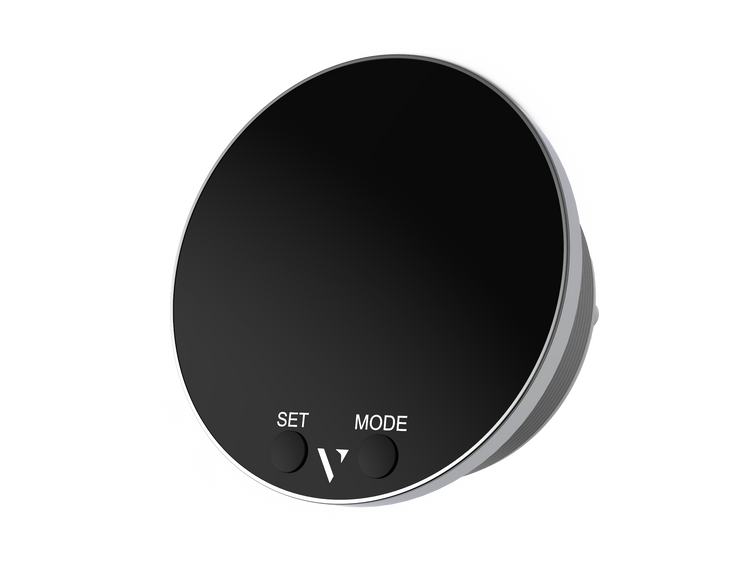

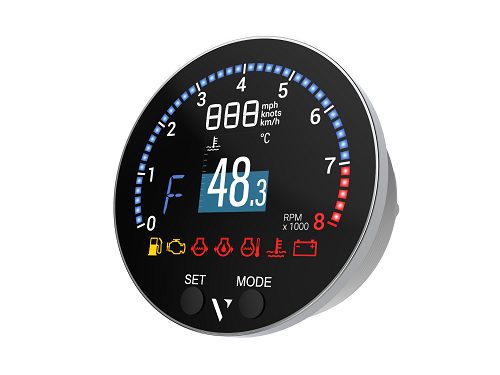

VMH 35


  • Series: VMH
  • Function: Rudder, Battery, Compass, Clock, Engine revolution, Depth, Exhaust gas temperature, GPS, Speed, Trim, Wind, Waste water level, Sea temperature, Outside temperature, Fresh water level, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure
  • Nominal Voltage: 12V
  • Bezel Color: Stainless steel
  • Screen dimension: 83mm
  • Connectivity: NMEA 2000, EasyLink, LIN

Highlights

<p><ul><li>Stylish black-glass design with brushed stainless-steel ring</li><li>New generation sun-readable color hybrid display</li><li>Intelligent Battery Sensor (IBS) port</li><li>Analog to NMEA 2000® gateway</li><li>Integrated high-performance GNSS receiver</li><li>NMEA 2000® certified</li></ul></p>


All features

  • Nominal voltage: 12 V
  • Operating voltage: 9 - 16 V
  • Current consumption: ≤ 150 mA (normal mode)
  • Protection class: IP X7
  • Dimensions: 100 mm (outer) 85 mm (mounting hole)
  • Front ring: Brushed stainless steel
  • Front lens: Mineral glass
  • Display: Color IBN + 1.44" TFT optically bonded
  • Analog inputs: 2x resistive / 1x frequency
  • Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway


Detailed Information

The first in its new VMH line of premium marine gauges, the Veratron VMH35 was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles and bulkheads on smaller vessels with limited space.
The Veratron VMH35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines. An integrated GPS makes the VMH35 the perfect standalone navigation solution. It integrates speed, compass and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical battery monitoring capabilities.
The Veratron VMH35 has a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors. Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criterions, both front and back. It fits a standard 85mm (3-3/8’’) panel cutout size.
Powered by the latest microprocessor, the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what a comparably-sized TFT screens use.
The VMH35 has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8'000 with a programmable overspeed alarm, tank levels, battery status, GPS and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.


Closeup

Accessories

  • Accessories Article Number:
  • Veratron Diagnostic Tool A2C3931270001
